The
Bartlett V6 Controller (BV6) offers precise control and many features not available with other controllers. It comes with preset firing profiles, allowing you to fire by simply entering a cone number, as well as the option of user-defined programs. It will hold up to 6 user-defined programs with up to 8 segments in each program. Or as an option you can combine 2 programs to make one complicated program with up to 16 segments in it. The Bartlett controller has one thermocouple for each circuit in the kiln so it is excellent at ensuring even temperature from top to bottom.

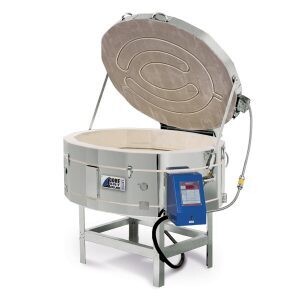

The Cone Art Kiln model 4209G and 4213G are our largest glass fusing and slumping kilns.
The 4209G is a full 42″ wide, 31″ from back to front and 9″ deep.
The giant G4213 is a full 42″ wide, 31″ from back to front and 13″ deep.
The lid and walls are 3″ thick which insulates better and which helps with slower cooling. Kanthal A-1 elements are in the lid and walls for even firings time after time. For large volumes or for large pieces, the Cone Art model 4209G and the 4213G are the obvious choice.
Compare the actual size of this kiln to other ovals on the market. This one is much larger!
4209G OV – 5.5 Cubic ft
208 or 240 Volts
All 208 or 240 volt models (larger kilns) are supplied with an 8 foot long power cord wired to the kiln but do not have a plug attached. These larger sized kilns are designed to be directly hard-wired to a into an electrical panel
60 Amp breaker required
Kanthal A-1 elements in lid and walls
CSA approved
Fires to 1700°F
3" premium grade firebrick walls
Corrosion resistant stainless steel jacket and fittings
Cone Art patented lid lifter is INCLUDED at no extra charge for the Cone Art Kiln 42 Series
Furniture Kit: 2 – 26″ dia x 3/4″ half shelves, 1 – 26″ x 13″ x 3/4″ rectangular shelf, 9 – 1″ posts, 9 – 3″ posts, 1 – kg kiln wash
Shipping via Transport Truck direct from Cone Art Kilns to your door
When purchasing a kiln of this size we recommend the addition of the Bartlett V-6 full-featured controller or the Genesis 2.0 for easy precise control.
These models are also available with the Quick Set Bartlett 3 button controller
Phase
Volt
Inside Dimension
Outside Dimension
Sections
Cubic Feet
Amps
Breaker Required
CU Wire GA(AWG)
Kilowatts
Ship Wt Lbs
Max Temp
1
240
41 x 43 x 13.5
47 x 37 x 19.5
1
8.25
48.00
60A
6
11.50
415.00
1700
1
208
41 x 43 x 13.5
47 x 37 x 19.5
1
8.25
55.00
60A
6
11.50
415.00
1700
The Bartlett V6 Controller (BV6) offers precise control and many features not available with other controllers. It comes with preset firing profiles, allowing you to fire by simply entering a cone number, as well as the option of user-defined programs. It will hold up to 6 user-defined programs with up to 8 segments in each program. Or as an option you can combine 2 programs to make one complicated program with up to 16 segments in it. The Bartlett controller has one thermocouple for each circuit in the kiln so it is excellent at ensuring even temperature from top to bottom.
Just like it’s predecessor, the Bartlett Genesis 2.0 Controller (Genesis) uses touch screen technology, graphical displays, has built in diagnostics, and can calculate your cost per firing. Being wifi enabled means available software updates, and communication with your smart phone
